Drawing conversion

Due to the large size of AutoCAD files (DWG, DXF) format files, many versions, complex format leads to direct loading in the web page efficiency is slow, occupy space memory and easy to load failure, therefore, we design and provide a unique web CAD file format: .mxweb , the file format is a good solution to many of the above problems. mxweb files and CAD drawing files can be converted to each other using the cloud map development kit we provide.

Download the Cloud map development kit

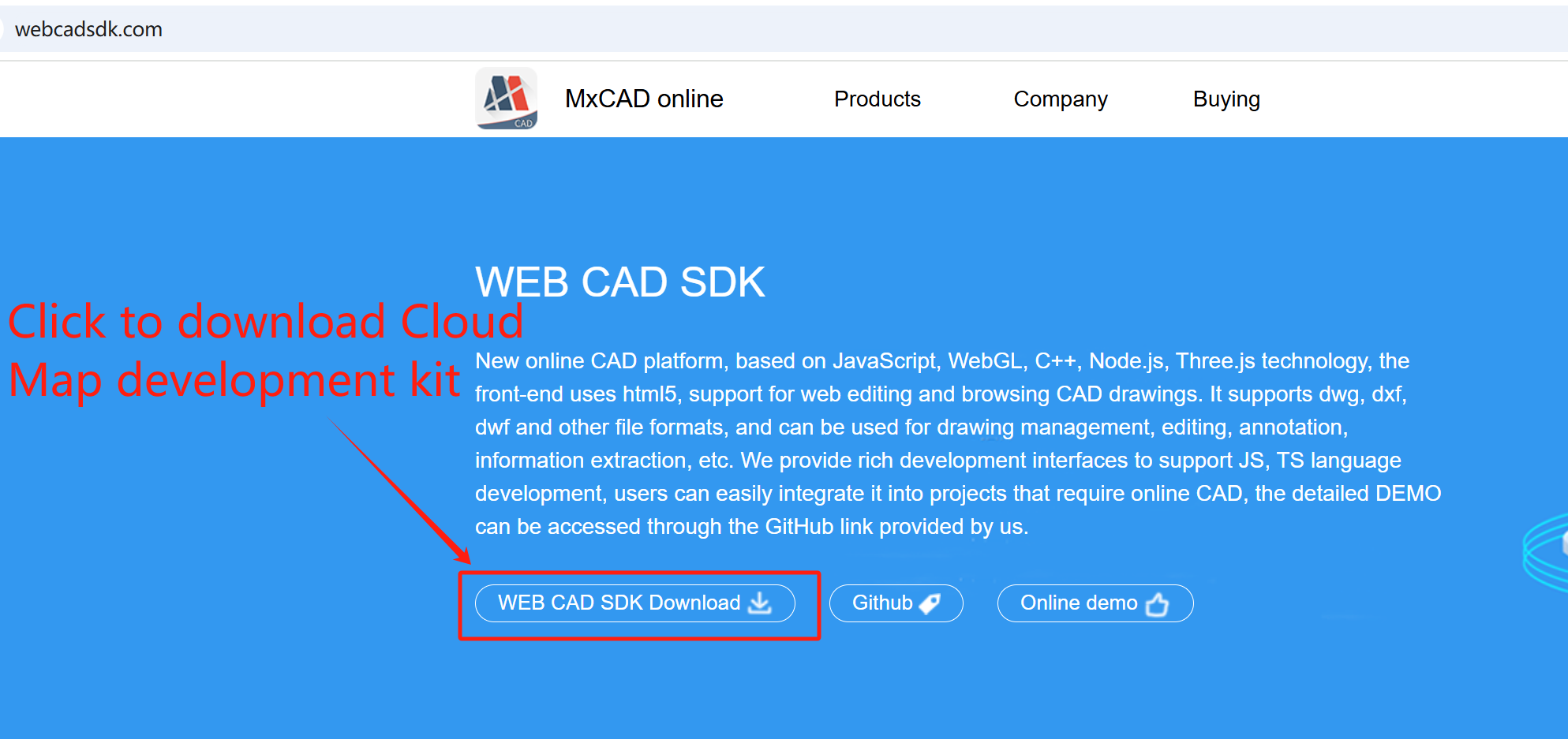

We need to download MxDraw cloud map development Kit

Download good MxDrawCloudServer1.0 TryVersion. 7 z compressed package, unpack,

Go to the MxDrawCloudServer\Bin\MxCAD\Release location in the unzived directory, which is the program directory responsible for converting the .mxweb format

Transfer CAD drawings to mxweb format

Mode one

Open the command window where the directory of MxDraw cloud image development Kit is located after decompression, find the path of the target drawing, start the command line and run the command: mxcadassembly path of the target drawing.

Example code is as follows:

cd C:\Users\MxDev\Downloads\MxDrawCloudServer1.0TryVersion\MxDrawCloudServer\Bin\MxCAD\Release

mxcadassembly D:\test2.dwg

Wait for the command line output {"code":0} indicates that the drawing is successfully converted. Files successfully converted to .mxweb format are automatically saved in the same directory as the target drawing.

Mode two

Open the command window where the directory of MxDraw cloud image development Kit is located after decompression, find the path where the target drawing is located, and start the command line to run the command: mxcadassembly JSON string

Example code is as follows:

mxcadassembly.exe {"srcpath":"D:\test2.dwg","outpath":"D:\","outname":"test", "compression":0}

	Description
srcpath	The path of the file to be converted
outpath	Indicates the path to the output file
outname	Indicates the file name of the output file (suffix must be added when converting mxweb to CAD drawings)
compression	0 means that it is not compressed. Not writing this attribute means that it is compressed

mxweb format to CAD drawings

We can also convert the file paper in the format of '.mxweb 'into a file in the format of'.dwg 'through the program, and execute the following command:

mxcadassembly.exe {"srcpath":"D:\test.mxweb","outpath":"D:\","outname":"test.dwg"}

Look out

The outname parameter must be followed by the suffix of the CAD drawing, usually.dwg

Linux Version

For the Linux version of the CloudDraw development package, authorization operation is required before operation: Enter the Bin/Linux/MxCAD directory, we should first give these files permission and copy some directories to the specified location:

sudo chmod -R 777 mxcadassembly

sudo chmod -R 777 ./mx/so/*

sudo  cp -r -f ./mx/locale /usr/local/share/locale

Then we can refer to the Windows version file format conversion method for drawing conversion. For example, call the following command to convert CAD drawings to mxweb format:

./mxcadassembly "{'srcpath':'/home/mx/test.dwg','outpath':'/home/mx/Test','outname':'xxx'}"

where srcpath: the path where the target CAD file is located, outpath: the specified path where the converted drawing file is located, outname: specifies the filename of the output mxweb file.

Then, refer to the method for converting file formats in the windows version to convert the drawings.
